SRP:$
< Roll over image to zoom in
KEY FEATURES
& Ideal for 1/5 on road and 1/5 off road scale applications
& Incredible efficiency and low power consumption
& NMB dual main bearings
& Superior waterproof
& 15T output shaft
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) | Weight (g) | |||
| Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | ||||||
| BH125W | 0.12 | 90.0/1249.9 | 0.11 | 110.0/1527.6 | 0.085 | 125.0/1735.9 | Steel | Brushless | all-metal | 59.5*29.5*54.5 | 209.0 |
Application :
1/5 Nitro Touring
1/5 Nitro Buggy
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.11 sec/60 degrees at no load
operating speed (8.4v): 0.085 sec/60 degrees at no load
stall torque (6.0v): 90.0kg.cm (1249.9 oz/in)
stall torque (7.4v): 110.0kg.cm (1527.6 oz/in)
stall torque (8.4v): 125.0kg.cm (1735.9 oz/in)
potentiometer drive: direct drive

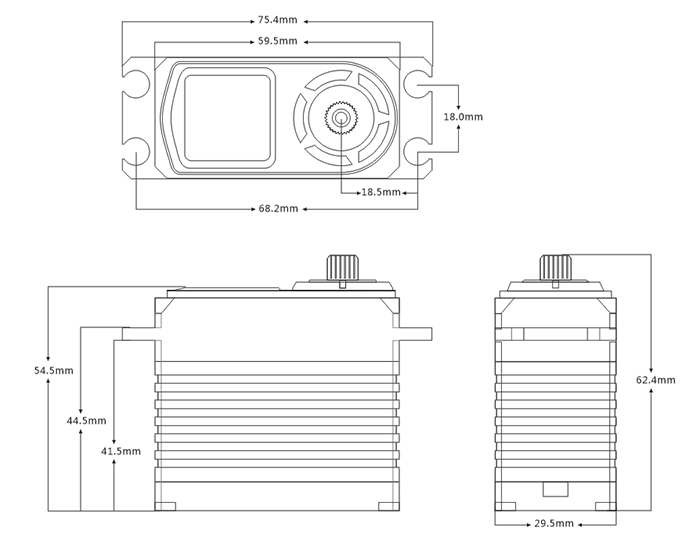

dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
weight: 209.0g (7.37 oz)
connector wire length: jr 350 mm
SRT SERVO OVERVIEW
All SRT servos are available to be customized by OEM service if you need, please feel free to contact us.
